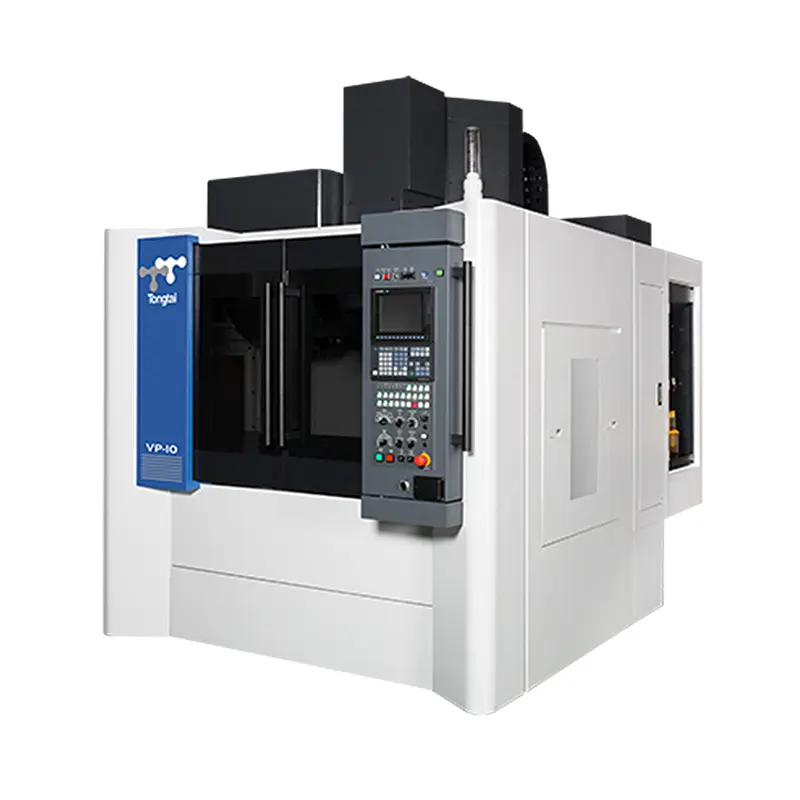

Wholesale General-Purpose CNC Vertical Mill Tongtai VP-10: Direct-Drive Spindle for All-Industry Precision Manufacturer, Factory

The Tongtai VP-10 Vertical Machining Center stands out as a versatile solution for diverse manufacturing needs, featuring a high-quality direct-drive spindle and rigid structure. Equipped with a BBT-40 spindle supporting dual-contact tool holders, this CNC milling machine delivers excellent precision and cutting performance—making it a cost-effective choice for automotive, mold & die, and general engineering shops.

Product Description

Product Overview

Engineered as a general-purpose CNC machine tool, the VP-10 adopts a robust C-frame design with Meehanite cast-iron bed and ribbed column, ensuring exceptional rigidity to minimize vibration during heavy cutting. Unlike specialized vertical CNC machines limited to narrow applications, its flexible performance adapts to all types of processing industries, balancing accuracy and efficiency for medium-sized parts.

Worktable & Load Flexibility: The 1070×510 mm T-slotted worktable supports up to 500 kg, paired with X/Y/Z travels of 1020/510/600 mm—ideal for aluminum housings, steel brackets, and cast-iron components.
Direct-Drive Spindle Advantage: The BT-40 taper spindle (10,000–15,000 rpm) with 11/7.5 kW motor (optional 15/11/7.5 kW) uses direct-drive technology for faster response and lower noise. Compatibility with dual-contact tool holders (BBT-40) enhances tool stability.
High-Speed & Accuracy: All axes feature roller-type linear ways and 36 m/min rapid traverse. Optional linear scales refine accuracy to ±0.005 mm positioning and ±0.003 mm repeatability—critical for mold & die work.
Efficient Tool Change: The 24-station arm-type tool changer (optional 30-station) achieves 2.2 seconds tool-to-tool change, minimizing downtime during multi-operation tasks.

Key Advantages

Dual-Contact Tool Stability: BBT-40 spindle design ensures tight tool-holder contact, reducing runout and extending tool life.
All-Industry Versatility: As a general-purpose model, it replaces multiple single-function machines, cutting equipment costs for job shops.
Cost-Effective Rigidity: Meehanite casting and ribbed column deliver industrial-grade stability at a competitive price compared to high-end 5-axis CNC machines.
User-Friendly Control: Standard Mitsubishi M80 CNC (Fanuc/Siemens optional) offers intuitive programming, simplifying setup for complex parts.

Ideal Applications

Trusted in automotive for component machining, mold & die for precision cavities, and general engineering for custom parts. Its compact footprint (2.6×2.4 m, 6,500 kg) fits small workshops, while its reliability complements horizontal CNC machines in larger production lines handling mixed workloads.

Product Specifications

SpecificationVP-10
Table size (LxW)1070 x 510 mm
Max. loading capacity500 kg
X/Y/Z axis travel1020 / 510 / 600 mm
X/Y/Z axis rapid traverse36 / 36 / 36 m/min
Spindle taper7/24 Taper No.40
Spindle speed10000 (15000) rpm
Spindle motor11 / 7.5 (15 / 11 / 7.5) kW
Tool capacity24 (30) pc

Product Video

Frequently Asked Questions (FAQ)
What is the maximum workpiece weight the VP-10 can handle?
The VP-10 features a robust worktable that supports a maximum loading capacity of 500 kg.
What are the travel distances for the X, Y, and Z axes?
The machine provides travels of 1020 mm for the X-axis, 510 mm for the Y-axis, and 600 mm for the Z-axis.
Does the machine support high-speed tool changes?
Yes, the 24-station arm-type tool changer achieves a tool-to-tool change time of just 2.2 seconds.
What CNC control systems are compatible with the VP-10?
The standard system is the Mitsubishi M80, but Fanuc and Siemens options are also available.
What is the advantage of the direct-drive spindle?
The direct-drive technology offers faster response, lower noise levels, and better stability compared to belt-driven designs.
Is the VP-10 suitable for high-precision mold making?
Yes, with optional linear scales, it can achieve ±0.005 mm positioning accuracy and ±0.003 mm repeatability, ideal for die and mold work.
