Wholesale Tongtai TMV-850QII: High-Load Vertical Machining Center for Heavy-Duty Precision Suppliers, Supplier

Wholesale Tongtai TMV-850QII: High-Load Vertical Machining Center for Heavy-Duty Precision Suppliers, Supplier

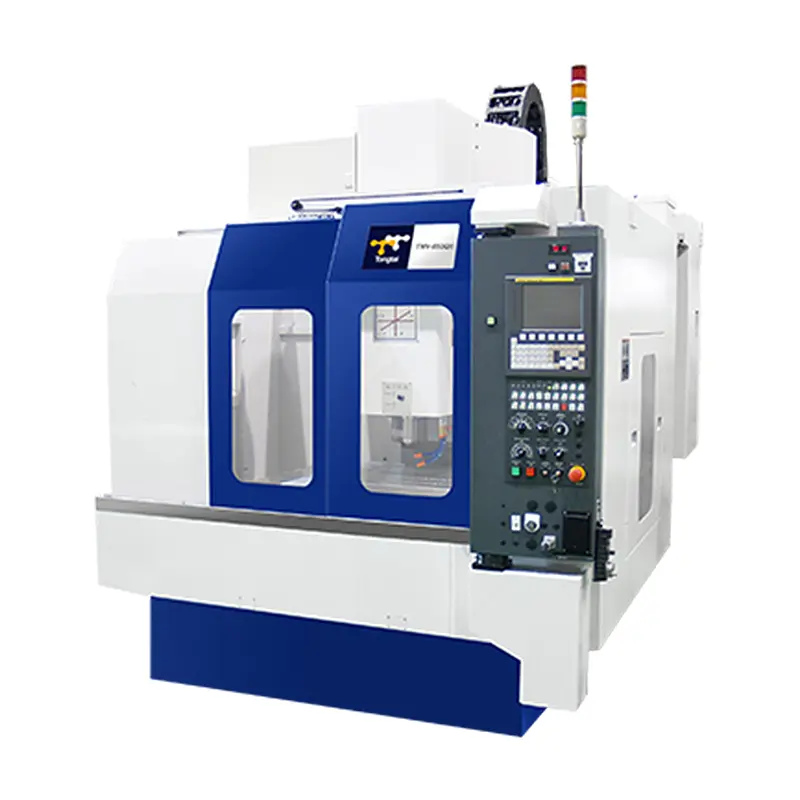

The Tongtai TMV-850QII stands out as a robust vertical CNC machine engineered for heavy-load machining. With tool change times under 2 seconds, a rigid structure, and expanded worktable capacity, this CNC machine tool excels in handling larger parts—making it ideal for automotive manufacturing, heavy machinery, and aerospace sectors requiring both power and precision.

Send Inquiry

Product Description

Product Overview

Designed as a high-performance C-frame vertical machining center, the TMV-850QII distinguishes itself with a focus on heavy-duty operations. Its one-piece Meehanite casting ensures exceptional stability, even when processing large workpieces, a key edge over standard vertical mills with smaller load capacities.
Expanded Capabilities Boasting an X/Y/Z axis travel of 850×600×530 mm and a 950×600 mm worktable, it supports a maximum load of 800 kg—perfect for larger medium-sized components, from thick steel plates to bulky cast-iron parts.
Versatile Spindle Performance Equipped with a 7/24 Taper No.40 spindle, it offers flexible speeds (8,000–15,000 rpm) paired with a high-power motor (up to 18.5 kW). This combination delivers consistent cutting force for tough materials.
Efficiency Enhancements All axes maintain a 48 m/min rapid traverse rate, while the 24/30-tool magazine enables swift changes—minimizing downtime during high-volume production.
Customization Flexibility Supports tailored configurations, including spindle speed upgrades and tool magazine expansions, to match unique heavy-duty machining needs.

Key Advantages

Heavy-Load Capacity With an 800 kg max load, it outperforms smaller vertical machining centers, handling larger parts without compromising stability—ideal for automotive chassis and machinery components.
Ultra-Fast Tool Changes Sub-2-second T-T time ensures continuous operation, a must for high-throughput production lines relying on CNC machining efficiency.
Precision Under Pressure High-precision linear guideways and ball screws maintain tight tolerances even under heavy loads, rivaling the accuracy of specialized machines.
Powerful Performance The 18.5 kW spindle motor delivers superior torque for cutting thick metals, making it a top choice for industries requiring robust vertical milling capabilities.

Ideal Applications

Trusted in automotive manufacturing for machining engine blocks and transmission housings, in heavy machinery for large structural parts, and in aerospace for thick aluminum components. Its expanded capacity complements 5-axis machining centers in production lines handling diverse part sizes.

Product Specifications

Specification TMV-850QII Details
Table size (LxW) 950 x 600 mm
Max. loading capacity 800 kg
X/Y/Z axis travel 850 / 600 / 530 mm
X/Y/Z axis rapid traverse 48 / 48 / 48 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 8,000 (12,000 / 10,000 / 15,000) rpm
Spindle motor 18.5/15/11 (Options: 15/11/7.5 to 12/9/7.5) kW
Tool capacity 24 (30) pc

Frequently Asked Questions

What is the maximum workpiece weight the TMV-850QII can handle?
The machine is designed for heavy-duty operations and can support a maximum loading capacity of up to 800 kg on its 950x600 mm worktable.
How fast can the machine perform tool changes?
The TMV-850QII features an ultra-fast tool change system with a tool-to-tool (T-T) time of less than 2 seconds, significantly reducing non-cutting time.
What are the available spindle speed options?
The standard spindle speed is 8,000 rpm, with optional configurations available for 10,000, 12,000, and 15,000 rpm to suit different material requirements.
What makes the construction of this machine suitable for heavy-duty milling?
It features a one-piece Meehanite casting which provides exceptional structural damping and stability, ensuring precision even during heavy metal removal.
Can the tool magazine capacity be expanded?
Yes, the machine comes with a standard 24-tool magazine, but it can be expanded to a 30-tool capacity for more complex machining tasks.
What is the rapid traverse rate for the X, Y, and Z axes?
All three axes (X, Y, and Z) feature a high-speed rapid traverse rate of 48 m/min, ensuring high efficiency in production cycles.
