Wholesale High-Speed CNC Mill Tongtai TMV-1050QII: Ultra-Fast Tool Change for Precision Production Suppliers, Supplier

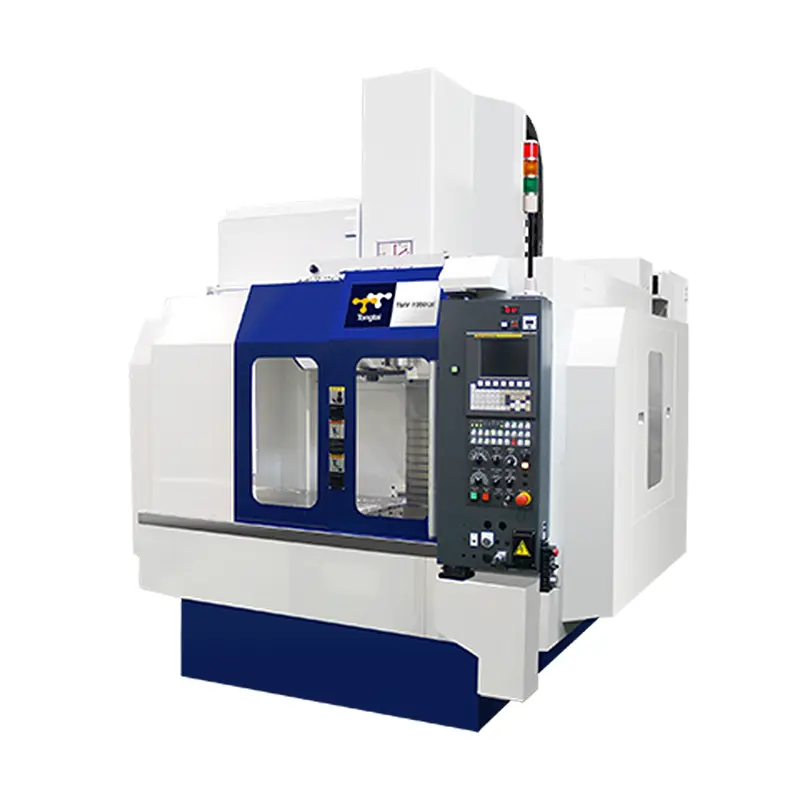

The Tongtai TMV-1050QII is a high-performance vertical CNC machining center built with a rigid structure and exceptional vibration resistance. Boasting tool change times under 2 seconds, high-precision linear guideways, and 48 m/min rapid traverse across all axes, this CNC machine tool delivers unmatched efficiency—making it a standout choice for automotive manufacturing and high-accuracy production lines.

Product Description

Product Overview

Engineered as a speed-focused vertical machining center, the TMV-1050QII combines rapid operations with stable performance, setting it apart from conventional milling centers. Its robust design prioritizes quick tool changes and high-speed movement without compromising precision, making it ideal for medium-sized part production requiring consistent quality.

Worktable Efficiency With an 1100×600 mm table (800 kg max load) and X/Y/Z travels of 1050×600×530 mm, it handles a range of components—from automotive brackets to precision industrial parts—with reliable accuracy.
Spindle Versatility Equipped with a 7/24 Taper No.40 spindle, it offers flexible speeds (8,000–15,000 rpm) paired with a powerful motor (up to 18.5 kW), adapting to both soft and hard materials.
Rapid Performance All axes achieve 48 m/min rapid traverse, while sub-2-second tool changes minimize downtime—critical for boosting throughput in busy production lines.
Customization Flexibility Supports tailored configurations, including 30-tool magazine upgrades, to match specific workflow needs—enhancing its adaptability in diverse manufacturing environments.

Key Advantages

Ultra-Fast Tool Changes T-T time under 2 seconds reduces idle periods, significantly increasing production efficiency over slower vertical milling machines.
High-Speed Traverse 48 m/min across all axes cuts non-cutting time, making it ideal for time-sensitive production runs.
Rigid Stability Strong structure design minimizes vibration during high-speed cuts, ensuring tight tolerances essential for automotive parts.
Automotive Compatibility Popular in the automobile industry for its ability to balance speed and accuracy, integrating seamlessly into automated lines.

Ideal Applications

Trusted for machining automotive components (e.g., transmission parts, suspension fittings), electronics enclosures, and precision industrial parts. Its speed and stability make it a valuable asset in production lines where horizontal CNC machines handle larger workpieces, while this model excels in medium-sized, high-velocity tasks.

Product Specifications

Specification TMV-1050QII
Table size(LxW) 1100x600 mm
Max. loading capacity 800 kg
X/Y/Z axis travel 1050/600/530 mm
X/Y/Z axis rapid traverse 48/48/48 m/min
Spindle taper 7/24 Taper No.40
Spindle speed 8,000 (12,000) (10,000) (15,000) rpm
Spindle motor 18.5/15/11 (12/9/7.5) (15/11/7.5) (18.5/11/7.5) kW
Tool capacity 24 (30) pc

Frequently Asked Questions

What are the core travel dimensions of the TMV-1050QII?
The machine features X/Y/Z axis travels of 1050 mm, 600 mm, and 530 mm respectively, with an 1100x600 mm worktable.
How fast is the rapid traverse on this vertical machining center?
It achieves a rapid traverse of 48 m/min on all three axes (X, Y, and Z), significantly reducing non-cutting time.
What is the tool-to-tool change time?
The TMV-1050QII is designed for speed, offering a tool change time (T-T) of under 2 seconds.
What spindle options are available for this model?
It comes with a No.40 taper spindle and offers multiple speed configurations ranging from 8,000 rpm up to 15,000 rpm to suit various materials.
Can the tool magazine capacity be expanded?
Yes, while the standard capacity is 24 tools, it supports customization and upgrades to a 30-tool magazine.
What industries benefit most from the TMV-1050QII?
It is ideal for the automotive industry, electronics manufacturing, and any sector requiring high-speed, high-precision machining of medium-sized parts.
