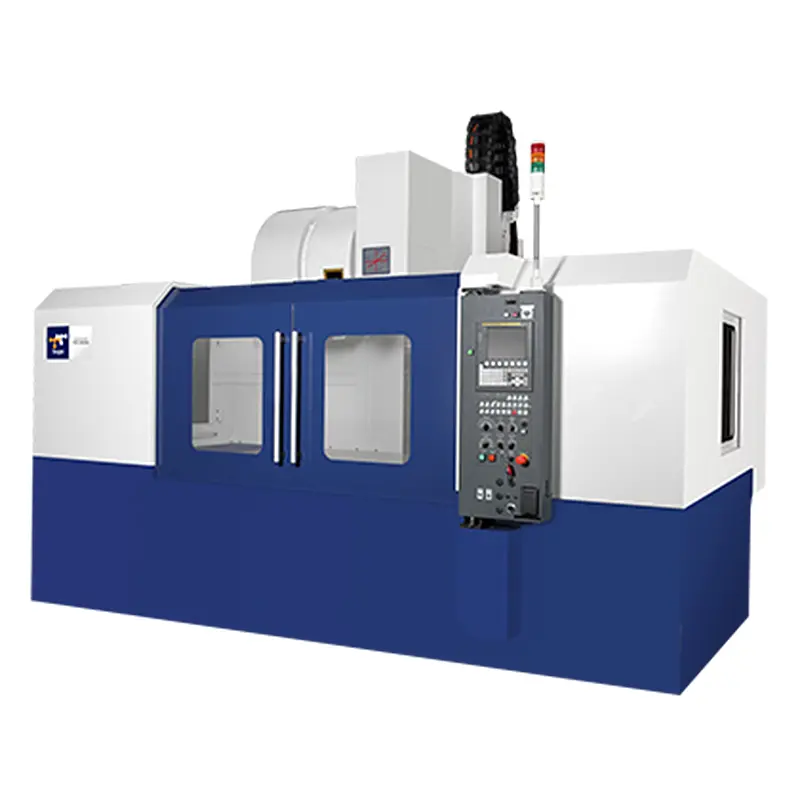

The Tongtai TMV-1500A is a rugged vertical machining center built with a specialized structure that delivers both high rigidity and superior vibration dampening. Its large-scale linear guideways, reinforced ball screws, and four Y-axis guideways provide unwavering support for heavy workpieces, while a 1664mm door opening simplifies handling—making it a standout CNC machine tool for industries processing large, weighty components.

Send Inquiry

Product Description

Product Specifications

This vertical machining center is engineered to excel in heavy-duty applications, combining stability with practicality. Unlike standard vertical mills, its unique design prioritizes both precision during heavy cutting and ease of operation, making it ideal for workshops dealing with oversized parts.

Spacious Work Area Boasting an X/Y/Z travel of 1525 × 762 × 710 mm and a 1600 × 762 mm worktable, it handles up to 1869 kg—perfect for large steel structures, heavy castings, and bulky industrial components.
Heavy-Duty Cutting The optional BT-50 spindle delivers exceptional torque for tough materials, paired with a 18.5 kW motor (8000–15000 rpm) to tackle demanding cuts—outperforming lighter CNC lathes in high-load scenarios.
Stable Motion Large linear guideways and ball screws ensure smooth, precise movement, while 18 m/min rapid traverse across all axes optimizes cycle times. Four Y-axis guideways distribute weight evenly.
Ergonomic Design The extra-wide 1664mm door eliminates struggles with loading/unloading heavy parts, reducing setup time and boosting productivity in busy CNC machining facilities.

Key Advantages

Specialized Rigidity The unique structure minimizes vibration during heavy cutting, ensuring accuracy even under maximum load—a critical feature for multi-axis CNC machines processing large components.
Unmatched Support Four Y-axis linear guideways provide full saddle support, surpassing the stability of standard CNC turning centers when handling oversized workpieces.
Adaptable Spindle Optional BT-50 configuration and variable speeds (8000–15000 rpm) handle everything from soft aluminum to hardened steel.
Easy Access The ultra-wide door streamlines workflow, a practical benefit that sets it apart from narrower machines when dealing with large, heavy parts.

Ideal Applications

Valued in automotive manufacturing for large chassis components, in heavy machinery for structural parts, and in energy sectors for thick-walled workpieces. Its robust build and accessibility complement 5-axis CNC turning centers in production lines focused on heavy, oversized components.

Technical Specifications

Specification TMV-1500A
Table size (L x W) 1600 x 762 mm
Max. loading capacity 1869 kg
X/Y/Z axis travel 1525 / 762 / 710 mm
X/Y/Z axis rapid traverse 18 / 18 / 18 m/min
Spindle taper 7/24 Taper No.40 (Optional BT-50)
Spindle speed 8000 (10000 / 12000 / 15000) rpm
Spindle motor 18.5/15/11 (12/9/7.5) (15/11/7.5) (18.5/11/7.5) kW
Tool capacity 24 pc
Frequently Asked Questions
What is the maximum workpiece weight this machine can handle?
The TMV-1500A features a robust worktable with a maximum loading capacity of 1869 kg, making it ideal for heavy castings and large industrial components.
What makes the motion stability superior to other CNC machines?
It utilizes four Y-axis linear guideways to distribute weight evenly and large ball screws to ensure smooth, precise movement even under high-load heavy cutting conditions.
Can the spindle be customized for different materials?
Yes, there is an optional BT-50 spindle configuration available for high-torque applications, with speed options ranging from 8000 to 15000 rpm to suit materials from aluminum to hardened steel.
How does the design facilitate the loading of large parts?
The machine is designed with an extra-wide 1664mm door, which provides significantly easier access for loading and unloading oversized or bulky workpieces compared to standard machines.
What are the primary industries that benefit from the TMV-1500A?
This machining center is widely used in automotive manufacturing (chassis), heavy machinery (structural parts), and the energy sector (thick-walled components).
What is the travel range for the X, Y, and Z axes?
The machine provides a generous travel range of 1525 mm on the X-axis, 762 mm on the Y-axis, and 710 mm on the Z-axis.
